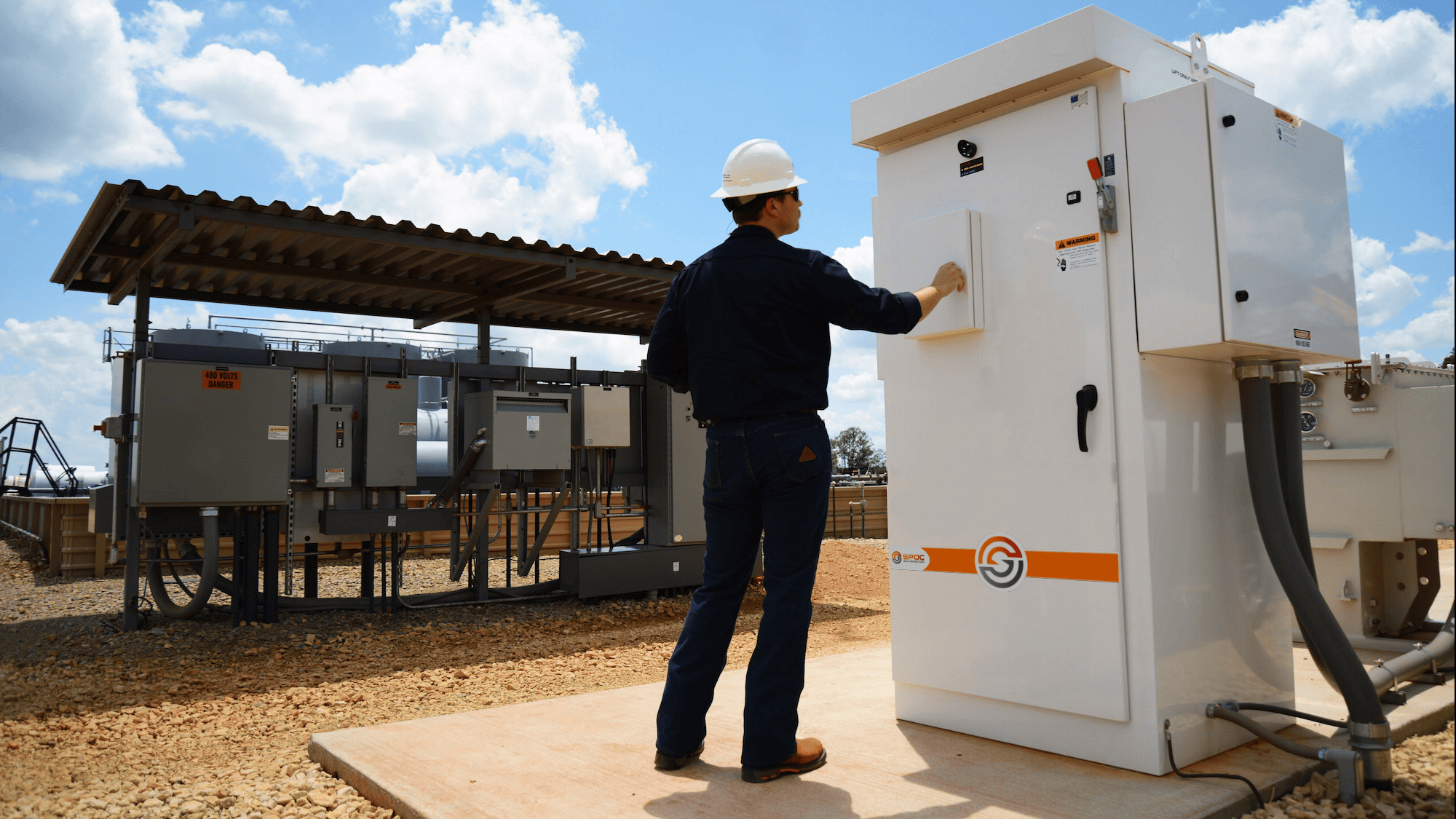

Subduer Oklahoma Customer copy
Products > ESP Drives > Subduer

Subduer ESP Pump Drives

Extend the life of your equipment, increase production and profit.

No shutdowns. No matter the pump. Subduer keeps ESPs running.
Run your pump at a higher speed than normally possible, or slow it down. Whatever is best for production. Subduer Drives allow a submersible pump to produce at a wider volume range than any fixed-speed control system.
Subduer ESP Drive
Service Comes Standard on ESP Drives
The pressure is on to keep your pumps running, night and day. And SPOC drives are made for extreme conditions—heat, cold, dust and grime. That said, in the oilfield everything breaks sooner or later. So, if one of our drives goes down, our service team will have you back up and running in hours, not weeks. And our technical team is available 24/7.

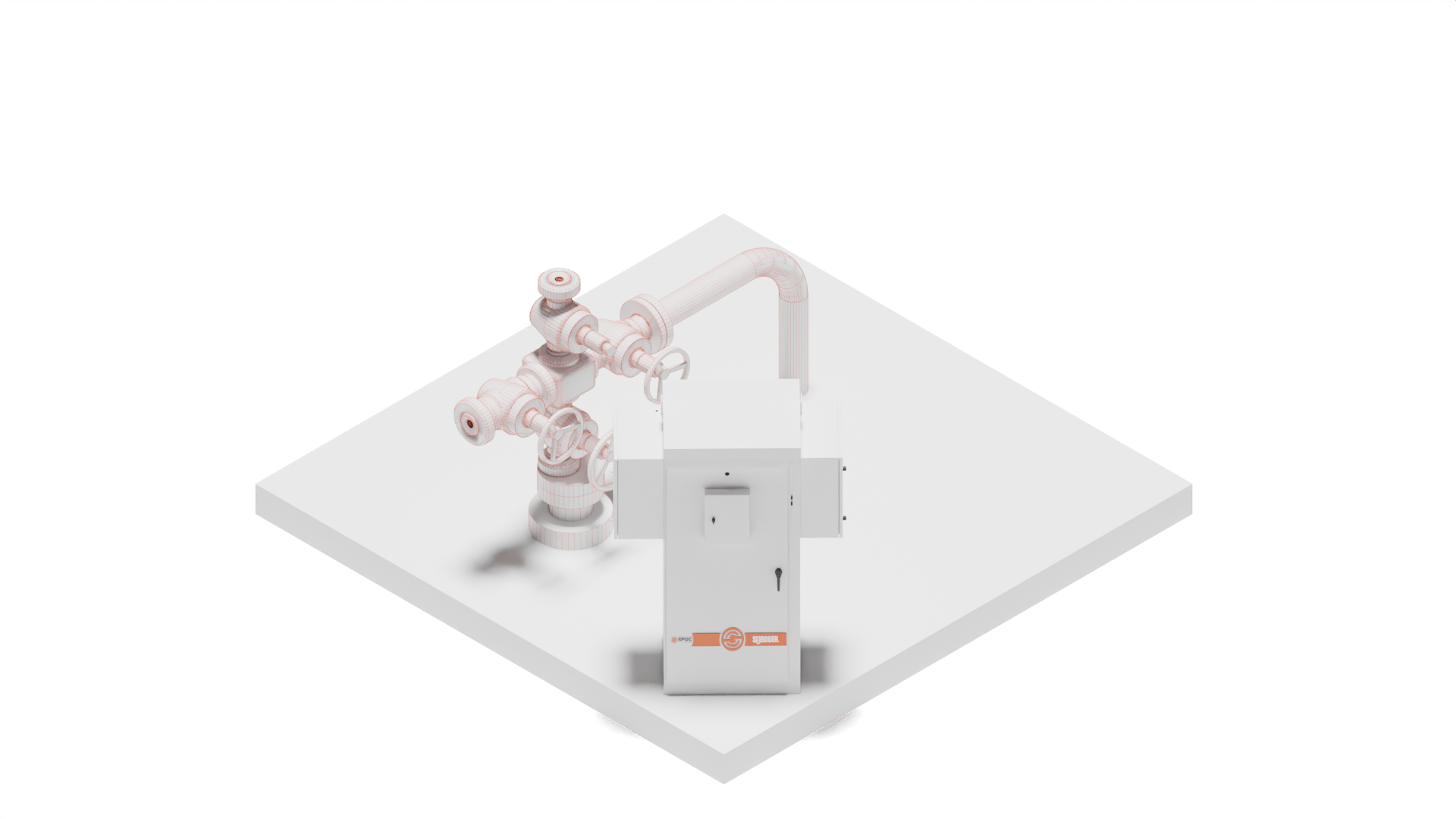

SPOC-Energy-IsometricTiles-Subduer-3-8-26-0050

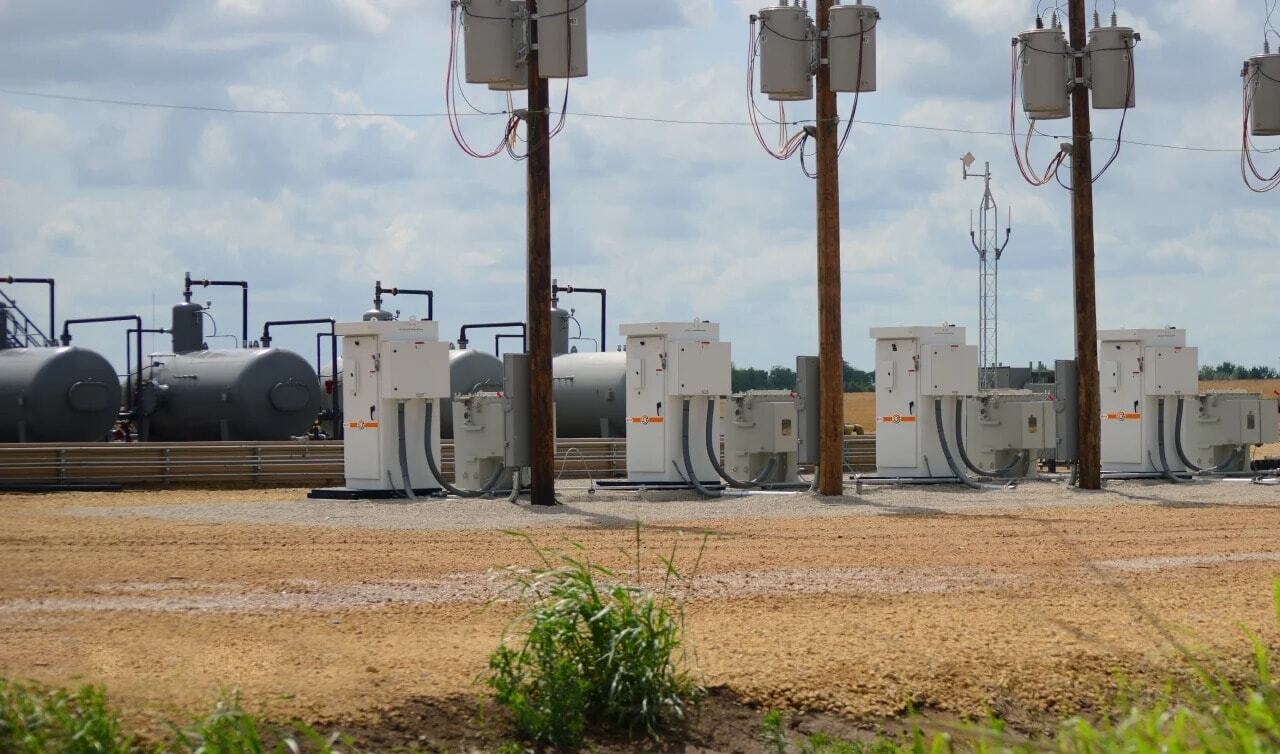

Subduer-1

Subduer Specs

HP range
5-1250KVA +
Input Range 380 – 500 VAC
Other voltages available, please consult SPOC
Standard
45-66 Hz Input Frequency
Standard
Output: AC Volts maximum
Std: Input Voltage Base,
AFE: Input Voltage x 1.2 Max
Output Frequency Range: Hz
0 – 320 Hz
Overload
110% for 1 minute standard
NEMA 3R, Harsh Environment Enclosure
Standard with Sun Shield & Heat Exhaust System
Cold Weather Heater & Thermo Switch
Standard
Extreme Cold Weather Heat Kit
Standard
Listings Available
UL, cUL Optional, CE Optional
WiseGuy Color Touch Screen Operator Interface
Standard
Communications
Modbus RTU, TCP Standard, others available
Altitude (Maximum without De-Rate)
3300 ft. (1000m)
Line Voltage Variation
+10/-15% Standard,
+10/-20% AFE Option
Efficiency
>97%
Power Factor
.98

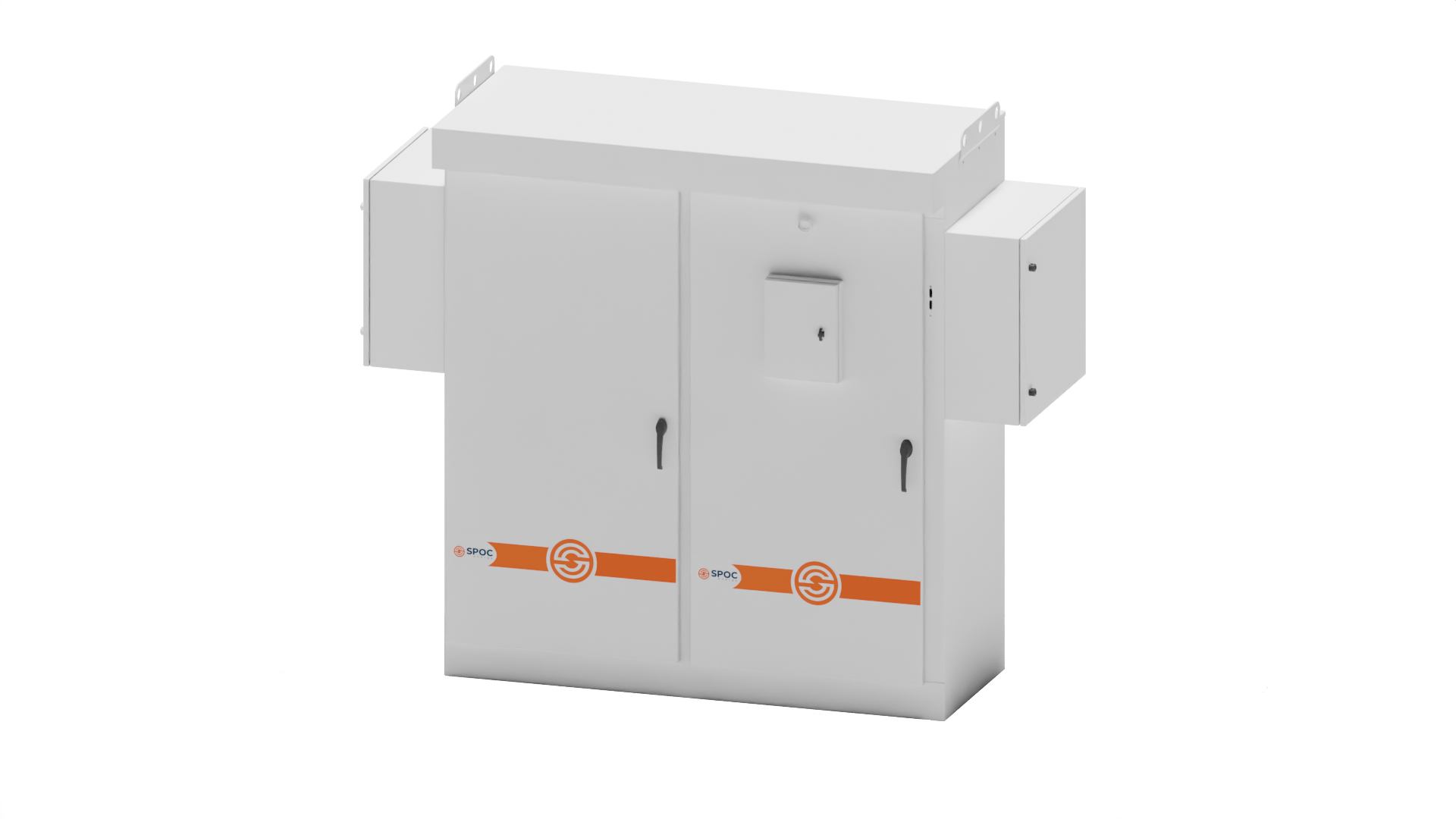

LB-2DR-Enclosure-Still-F162-BB-2_7_26-01(1)
Optimized Production

Our drives enable your equipment to run at the optimal speed for each well’s inflow rate. Rather than stopping the motor and shutting down the well, our drive technology slows your pump automatically at pump off.

Reduced Maintenance, More Uptime

Decreasing the number of start/stop cycles greatly reduces wear and tear on equipment. That means lower maintenance and replacement costs AND much less downtime.

Lower Costs, Improved Profitability

In addition to reduced maintenance, our drives pay for themselves through lower energy costs—cut by as much as 40% when compared to wells operating without a variable frequency drive.

Tailor-Made for Your Operations

Every product conversation begins with a detailed analysis of your needs—your fields, applications, goals and challenges. Only then can we tailor the product to your pump and your production needs.

Video Thumbnail gary dunkerson
"SPOC's exceptional service is critical, because in the oil and gas industry, there is no tomorrow, just today.”
Gary Dunkerson
VP Business Development, TankLogix
AFTMRK-SPOC-DriveShield
Aftermarket Support
The Industry's Most
Comprehensive Warranty
We offer the most comprehensive extended warranty in the entire industry. It even protects against a billion-volt lightning strike. With SPOC, you’re protected at all times.
