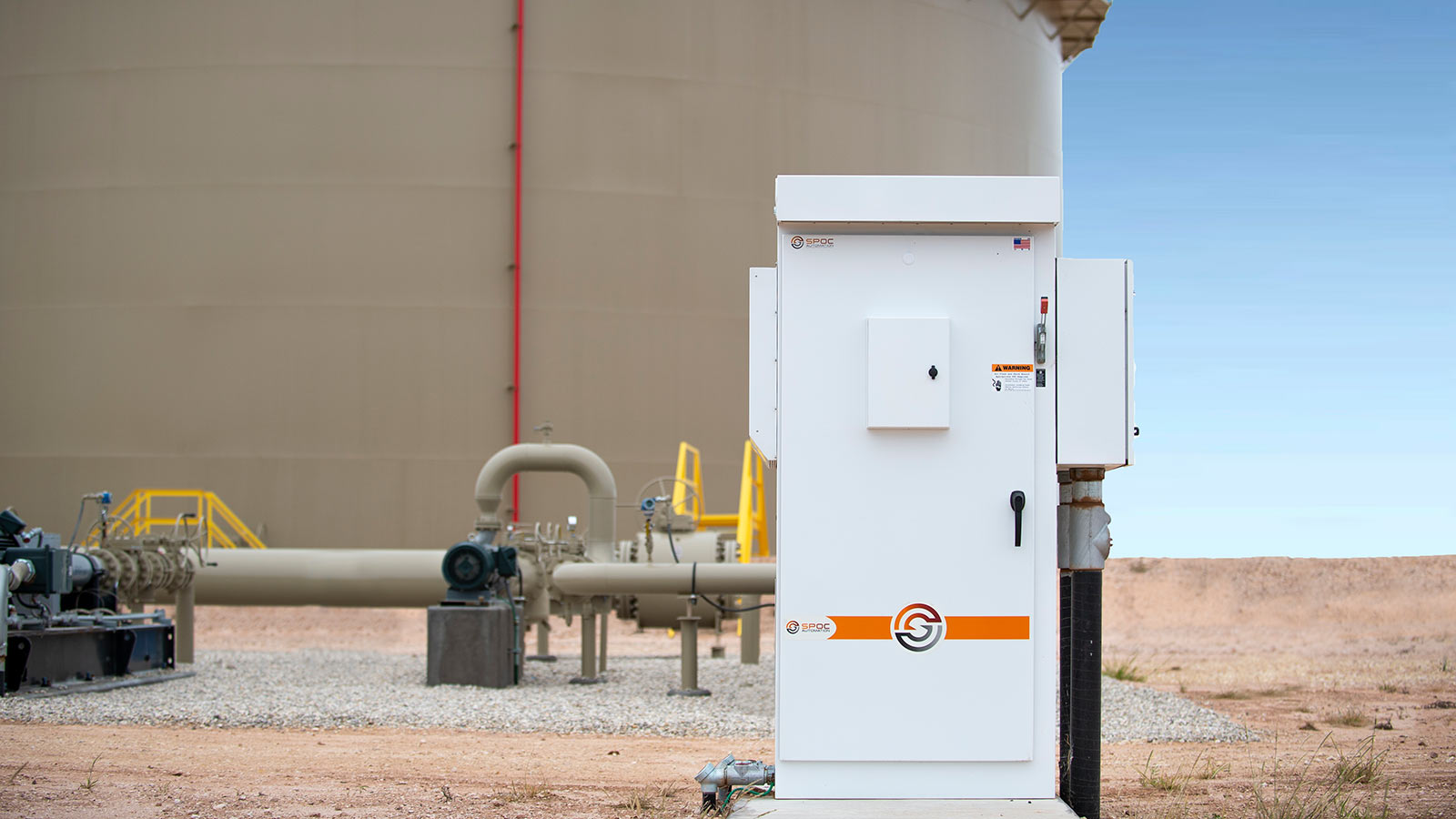

SPOC_HPS_Pump_3837-1
Products > Horizontal Pump Drives

Horizontal Pump Drives For saltwater disposal or injection pumps

Reduce equipment stress. Maximize production. Boost profits.

Saving on Energy and Maintenance Costs Has Never Been So Simple.
The HPS variable frequency drive controls the speed at the pump, allowing you to leave the valve open at all times, reducing wear and failures within the system. The drive’s simple interface allows you to control and monitor your tank levels, vibration sensors, intake pressure and discharge pressure. You can now control the pump at the widest possible range, all while reducing the stress on the system, and in turn, maintenance costs and downtime. Improved operational efficiency also allows you to reduce energy use. With the HPS Series, your costs are going down, while your profits go up.
HPS Drive Series
Service is Always a Standard Feature on Every HPS
The pressure is on to keep your pumps running, night and day. And SPOC drives are made for extreme conditions—heat, cold, dust and grime. That said, in the oilfield everything breaks sooner or later. So, if one of our drives goes down, our service team will have you back up and running in hours, not weeks. And our technical team is available 24/7.
SPOC-Energy-IsometricTiles-HPSAni-FluidSim_3-4-26_1020

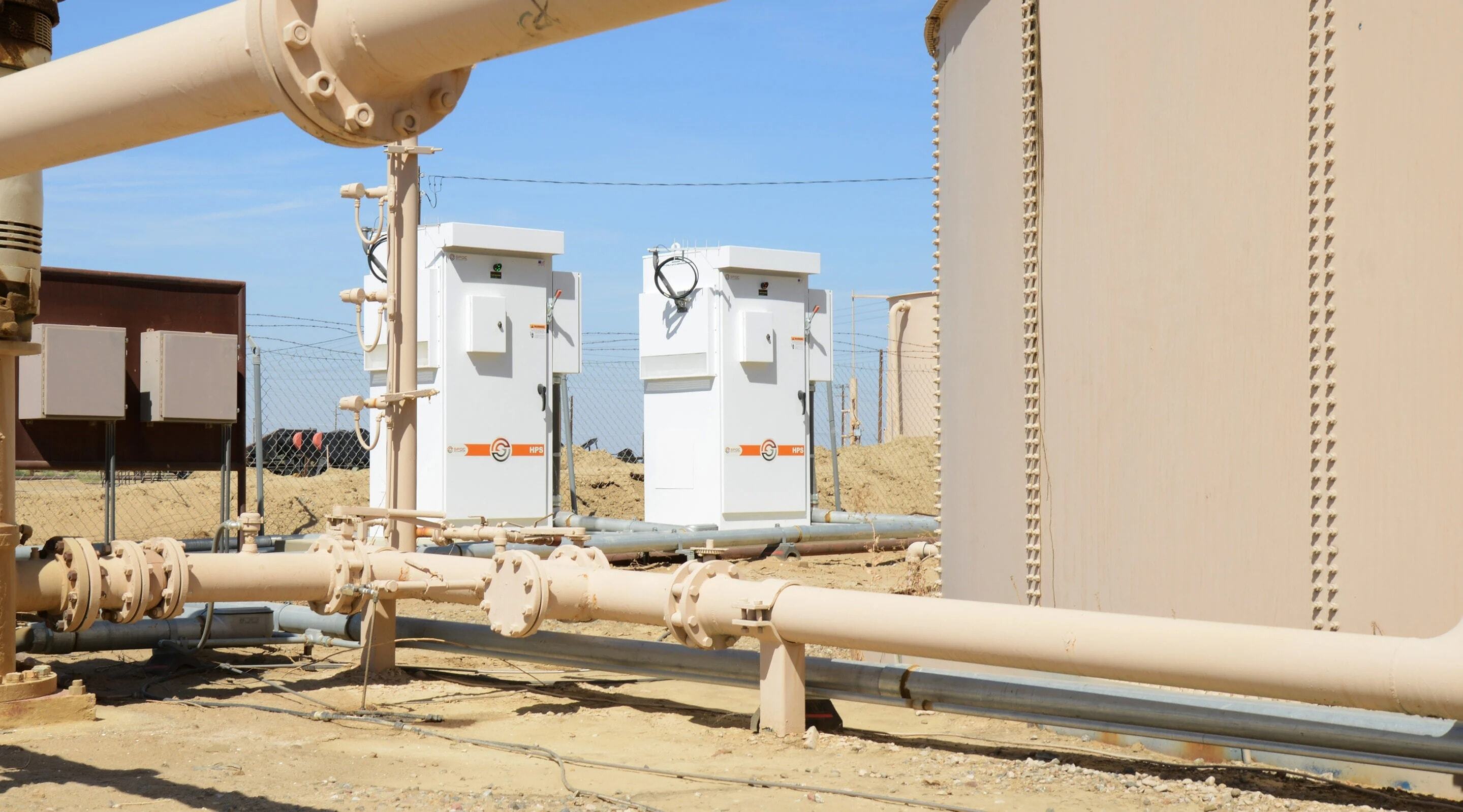

HPS_installed2-e1564576687209-1

HPS Drive Series Specs

Input Voltage
208V, 230V,
480V +10/-20%
Well Optix SCADA Interface
Optional
Common I/O platform throughout all HP ranges
Standard
Transient voltage surge protection and 3% input line reactor
Standard
NEMA type 3R outdoor rated enclosures with sun shields, exhaust heat plenum
Standard
Extreme climate rating from arctic to desert conditions
-40°F to 122°F Standard
WiseGuy data capture, trending, time and date stamp, history, USB port for download
Optional
Interchangeable and expandable I/O cards
Standard
Communications: ModBus RTU, Ethernet and others
Optional
Open Protocols for your SCADA system and telemetry ready
Optional
IEEE-519 compliant low-harmonic options
Optional
Proven, tested products with over 35,000 units
Yes

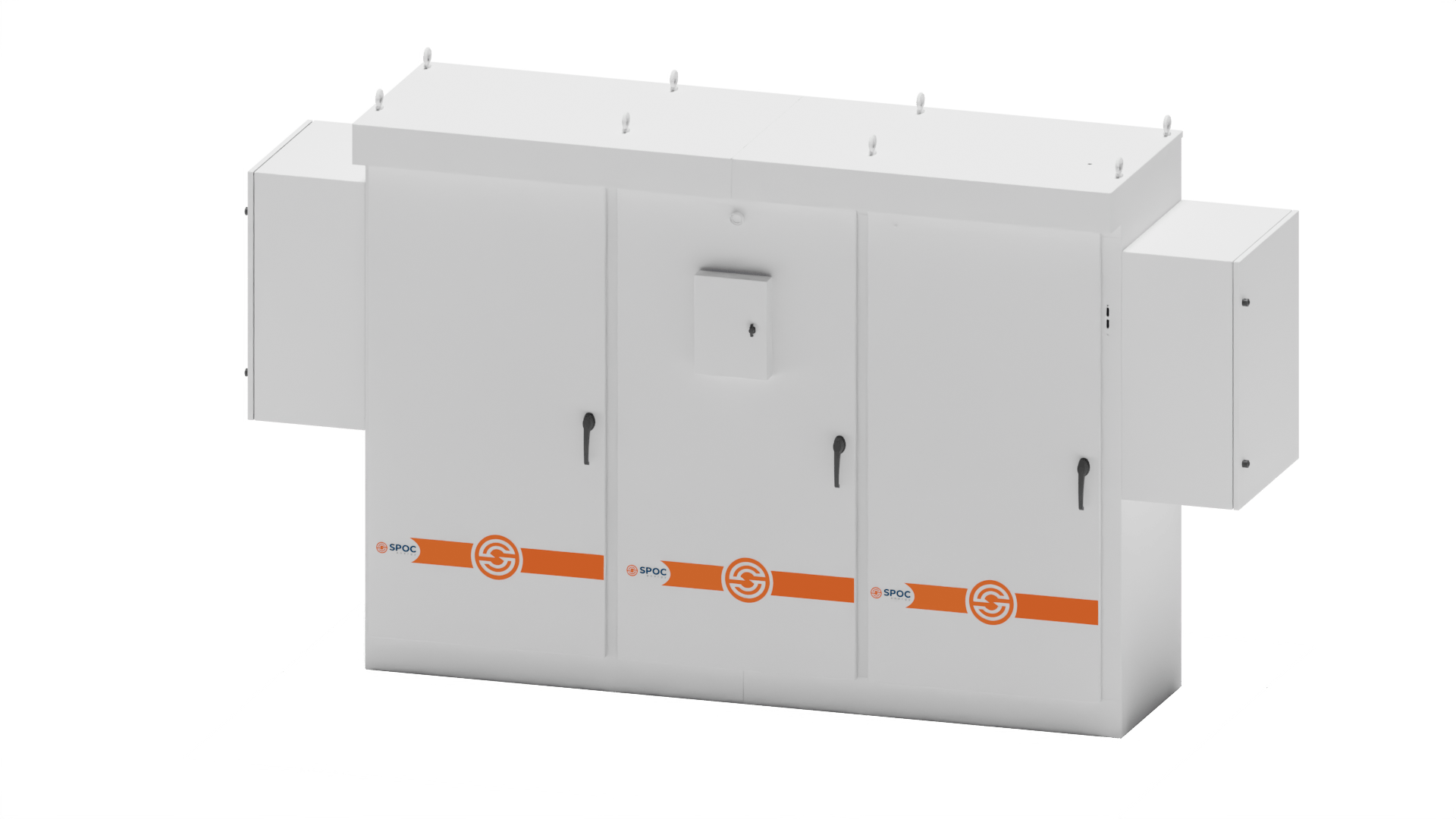

LB-2DR-Enclosure-Still-F162-BB-2_7_26-01
Less Stress. Less Wear. Fewer Failures.

The SPOC HPS drive greatly reduces wear on your system. It allows you to control the speed of the pump, which means you can leave the valve fully open at all times, reducing the stress on the system, and in turn, maintenance costs and downtime.

Easy to Operate

The drive’s simple interface allows personnel to easily grasp operations to take control and monitor your tank levels, vibration sensors, intake pressure and discharge pressure.

Precise Control

HPS allows for precision control of the pump in the widest possible range. That allows you to quickly and easily adjust to changing conditions, reducing costs and maximizing production.

Better Actionable Data

Best-in-class data collection—both historical and run-time information—allows for trending and actionable analysis.

Remote Operation

The HPS is available with ModBus RTU and Ethernet communications, so you can tie the drive into SCADA systems, including SPOC’s industry-leading Well Optix. And, as with all SPOC drives, operation is user-friendly, both on-site and from any internet-connected device.

Video Thumbnail casey
"I prefer SPOC for two reasons—the quality of their enclosures and the service they provide."
Casey Hausenfluke
Facilities Engineer, CrownQuest
AFTMRK-SPOC-DriveShield
Aftermarket Support
The Industry's Most
Comprehensive Warranty
We offer the most comprehensive extended warranty in the entire industry. It even protects against a billion-volt lightning strike. With SPOC, you’re protected at all times.
